Productdetails:
|
| Lossing Afgesneden Voltage: | 2.0V | Zelflossingstarief: | 2%/year |
|---|---|---|---|
| Celgewicht: | Ong.: 2,5 g | Artikelnummer: | CP401725 |
| Steekproeven: | Beschikbaar | Embleem: | welkom OEM |
| Hoog licht: | De batterij van de zakcel LiMnO2,PCB-het Opzetten de batterij van het Lithiumpolymeer,CP401725 de batterij van het lithiumpolymeer |
||
Gegevensbladen:

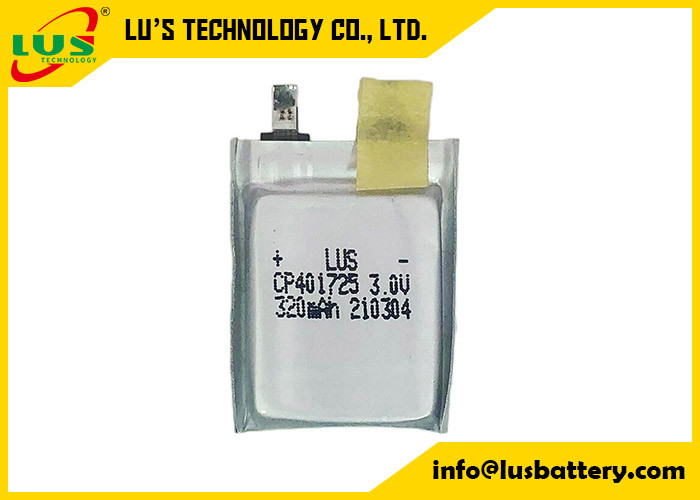

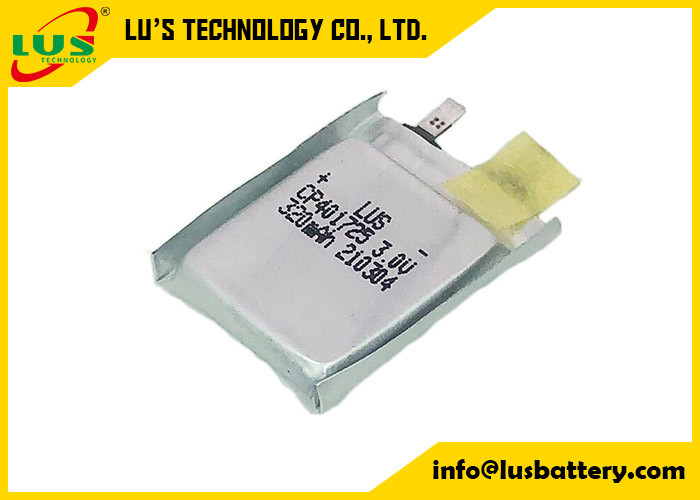

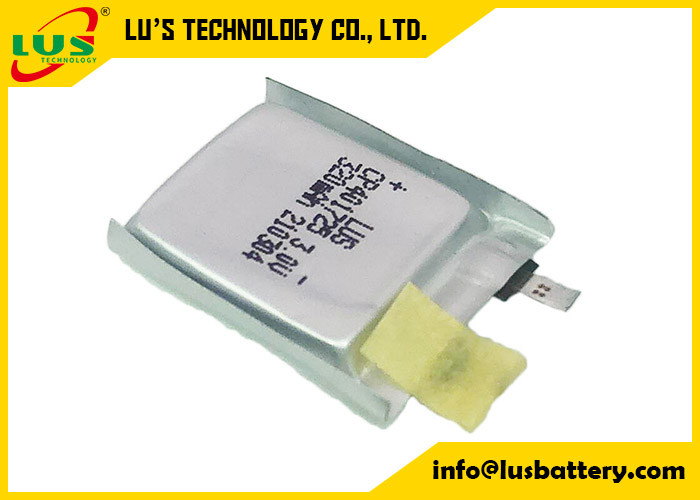

| Naam | uiterst dunne batterij |
| Model | Cp401725 |
| Voltage | 3.0V |
| Capaciteit | mah 320 |
| Lengte | MAXIMUM 28 mm |
| Breedte | MAXIMUM 18mm |
| Dikte | MAXIMUM 4.0mm |
| Temperatuur | -40 tot +70 |
| Houdbaarheid | 10 jaar |
| Terminal | Kan worden aangepast |
| OEM en ODM | Welkom |
CP401725 de tekening van de het lithiumbatterij van de zakcel:
Het uiterst dunne celcp Voordeel van reekslimno2 batterijen:
Workshop:
LUS-Lithium maganese batterij:
| Model | Maximumverschijningsdimensies (mm) | Gewicht (G) |
Nominale spanning (v) |
Nominaal vermogen (mAh) |
Norm Lossingsstroom (mA) |
Max.Current (mA) | |
| Ononderbroken | Impuls | ||||||
| CP042922 | 0.45×29×22 | 0,4 | 3.0 | 15 | 0,5 | 10 | 20 |
| CP042345 | 0.45×23×45 | 0,8 | 3.0 | 30 | 0,5 | 20 | 35 |
| CP104848 | 1.2×49×49 | 3.8 | 3.0 | 350 | 1.0 | 50 | 100 |
| CP142828 | 1.5×29×29 | 1.5 | 3.0 | 100 | 1.0 | 15 | 30 |
| CP153030 | 1.6×31×31 | 1.8 | 3.0 | 120 | 1.0 | 50 | 100 |
| CP155050 | 1.6×51×51 | 6.0 | 3.0 | 650 | 5.0 | 500 | 1000 |
| CP2012120 | 2.0×12×125 | 5.5 | 3.0 | 450 | 1.0 | 100 | 200 |
| CP202850 | 2.2×28.5×50 | 3.6 | 3.0 | 380 | 1.0 | 100 | 200 |
| CP224035 | 2.4×41×36 | 4.8 | 3.0 | 580 | 1.0 | 150 | 300 |
| CP223045 | 2.4×31×46 | 4.2 | 3.0 | 480 | 1.0 | 150 | 300 |
| CP224147 | 2.3×45×49 | 7.0 | 3.0 | 800 | 1.0 | 500 | 1200 |
| CP265045 | 2.8×51×46 | 9.0 | 3.0 | 1200 | 1.0 | 300 | 500 |
| CP264558 | 2.8×46×59 | 9.5 | 3.0 | 1250 | 5.0 | 300 | 500 |
| CP305050 | 3.2×51×51 | 12.5 | 3.0 | 1600 | 5.0 | 600 | 1000 |
| CP401720 | 4.2×18×21 | 2.0 | 3.0 | 220 | 1.0 | 50 | 120 |
| CP401922 | 4.2×20×23 | 2.6 | 3.0 | 300 | 1.0 | 100 | 150 |
| CP405050 | 4.2×51×51 | 17.0 | 3.0 | 2400 | 5.0 | 1000 | 1500 |
| CP451728 | 4.5×18×29 | 3.2 | 3.0 | 380 | 1.0 | 120 | 200 |
| CP502525 | 5.2×26×26 | 4.5 | 3.0 | 600 | 5.0 | 200 | 300 |
| CP502440 | 5.2×25×42 | 8.5 | 3.0 | 1200 | 1.0 | 400 | 800 |
| CP503742 | 5.2×38×43 | 13.0 | 3.0 | 1900 | 5.0 | 800 | 1200 |
| CP504644 | 5.2×47×45 | 17.0 | 3.0 | 2500 | 5.0 | 1200 | 2000 |
| CP505050 | 5.2×51×51 | 22.0 | 3.0 | 3000 | 10.0 | 1500 | 2000 |
| CP602026 | 6.2×21×27 | 4.5 | 3.0 | 550 | 1.0 | 200 | 300 |
| CP701725 | 7.2×18×26 | 4.5 | 3.0 | 520 | 1.0 | 150 | 300 |
| CP783970 | 7.8×39×70 | 36.5 | 3.0 | 5500 | 10.0 | 3000 | 5000 |
| CP7839109 | 7.8×39×109 | 63.0 | 3.0 | 10000 | 10.0 | 3000 | 5000 |
| CP802060 | 8.0×20×60 | 15.5 | 3.0 | 2100 | 10.0 | 2000 | 3000 |
| CP952434 | 9.7×25×35 | 11.5 | 3.0 | 1700 | 5.0 | 500 | 800 |
| CP1003742 | 10.2×38×43 | 26.0 | 3.0 | 3900 | 5.0 | 1200 | 2000 |
